Description

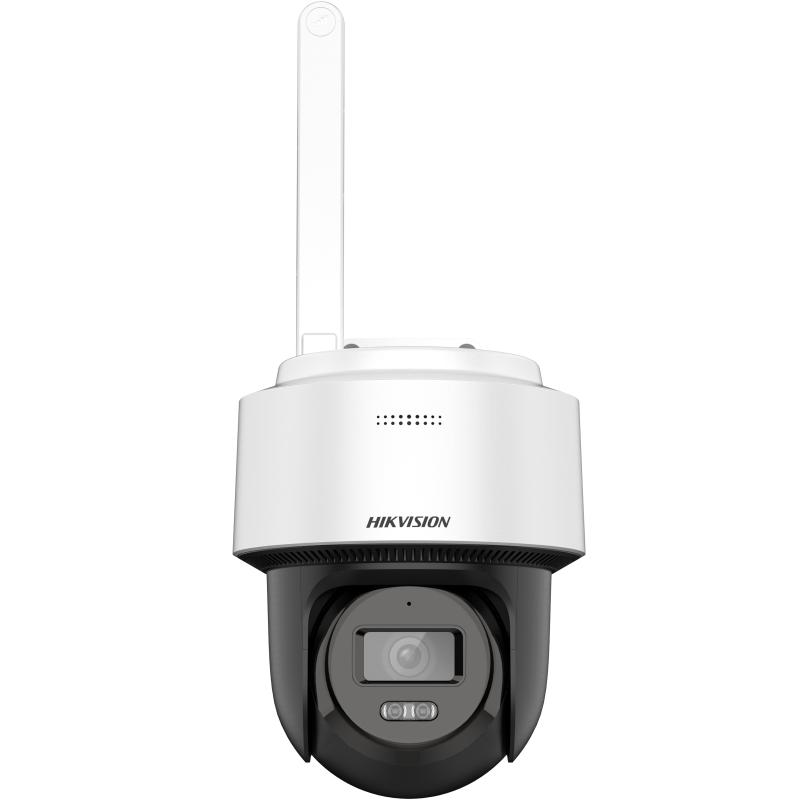

The 2MP PTZ 4G Outdoor Security Camera is designed to deliver reliable surveillance for homes, shops, farms, construction sites, and warehouses. With Full HD 1920 × 1080 resolution, the camera captures clear and detailed video footage both day and night.

Thanks to its pan and tilt functionality, the camera can rotate up to 345° horizontally and 80° vertically, providing wide coverage with minimal blind spots.

The camera includes smart motion detection that identifies humans and vehicles, ensuring you receive more accurate alerts and fewer false notifications.

For nighttime monitoring, the camera uses IR and white light illumination, allowing clear visibility up to 30 meters in complete darkness.

With its built-in microphone and speaker, you can communicate remotely using your mobile phone through the surveillance app.

Designed for outdoor use, the camera features IP66 weatherproof protection, ensuring reliable operation in rain, dust, and extreme temperatures.

---

Key Features

Full HD 1080P Video

Capture clear surveillance footage with 1920 × 1080 resolution.

Wide PTZ Coverage

• Pan: 0° – 345°

• Tilt: 0° – 80°

Covers large areas with minimal blind spots.

Smart Motion Detection

AI detection supports human and vehicle identification to reduce false alerts.

Auto Tracking

Automatically follows moving objects within the camera’s view.

Smart Night Vision

Combination of IR and white light illumination provides night vision up to 30 meters.

Two-Way Audio

Built-in microphone and speaker allow real-time communication.

Large Storage Support

Supports microSD card up to 512GB for local recording.

Weatherproof Outdoor Design

IP66 rated housing protects the camera from rain and dust.

---

Camera Specifications

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS

• Maximum Resolution: 1920 × 1080

• Minimum Illumination:

  • Color: 0.04 Lux @ F2.0

  • Black & White: 0 Lux with IR

• Shutter Speed: 1/3 s – 1/100,000 s

• Day/Night Mode: IR-cut filter

---

Lens

• Lens Type: Fixed focal lens

• Lens Options: 2.8 mm / 4 mm

• Aperture: F2.0

• Lens Mount: M12

Viewing Angle

2.8 mm Lens

• Horizontal: 101°

• Vertical: 56°

• Diagonal: 118°

4 mm Lens

• Horizontal: 78°

• Vertical: 42°

• Diagonal: 92°

---

PTZ Movement

• Pan Range: 0° – 345°

• Tilt Range: 0° – 80°

• Pan Speed: Up to 25°/s

• Tilt Speed: Up to 20°/s

---

Night Vision

• Light Type: IR + White Light

• Night Vision Range: Up to 30 m

• IR Wavelength: 850 nm

• Smart Supplement Light: Yes

---

Video

• Main Stream: 1080P / 720P

• Frame Rate: Up to 30 fps

• Compression: H.265 / H.264

• Bitrate: 32 Kbps – 8 Mbps

---

Audio

• Built-in Microphone

• Built-in Speaker

• Audio Compression: G.711 / AAC-LC

• Noise Filtering: Yes

---

Network

• Protocols: TCP/IP, HTTP, RTSP, RTP, SMTP, IPv4/IPv6

• ONVIF Support: Profile S / G / T

• Users Supported: Up to 32 users

• Simultaneous Live View: Up to 6 channels

---

Storage

• MicroSD Card Support: Up to 512GB

---

Interfaces

• Ethernet: RJ45 10/100 Mbps

• Built-in Microphone: Yes

• Built-in Speaker: Yes

• Reset Button: Yes

---

Power & Environment

• Power Supply: 12V DC

• Power Consumption: Max 9W

• Protection Rating: IP66

Operating Temperature

• -30°C to 40°C

---

Physical Specifications

• Dimensions: 131.9 × 164 × 312.6 mm

• Weight: Approx. 600 g

• Package Weight: Approx. 900 g

• Material: Plastic

---

Certifications

• CE

• RoHS

• WEEE

• REACH
