Description

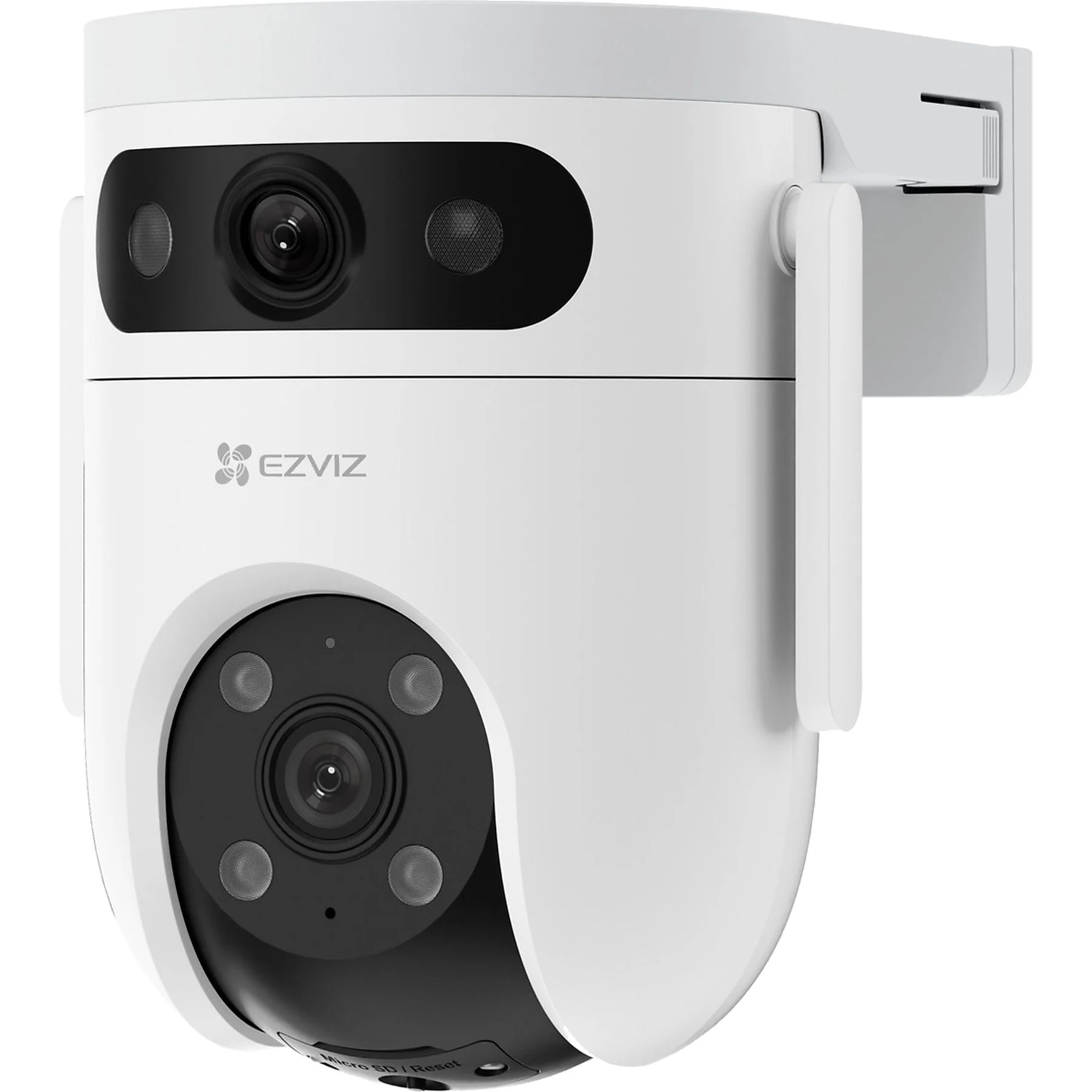

The EZVIZ H9c Dual-Lens Smart Security Camera is designed to provide advanced surveillance with two integrated cameras for wider and more detailed monitoring.

The upper wide-angle camera captures a broad overview of the area, while the bottom telephoto camera provides focused monitoring of distant objects. Together, they deliver a powerful surveillance solution for homes, offices, shops, and outdoor properties.

With 3MP Quad HD resolution (2304 × 1296), the camera records clear and detailed footage to help you easily identify people and vehicles.

The pan and tilt function (350° pan / 80° tilt) enables the camera to monitor large areas with minimal blind spots.

Equipped with AI-powered human and vehicle detection, the camera sends more accurate alerts and reduces false alarms caused by animals or environmental movement.

When motion is detected, auto-tracking automatically follows the subject, keeping important activity within view.

For nighttime monitoring, the camera offers infrared night vision up to 30 meters, ensuring reliable surveillance even in complete darkness.

The two-way audio system allows you to listen and communicate directly through the camera using the EZVIZ mobile app.

The camera supports both WiFi and wired Ethernet connections, providing flexible installation options.

---

Key Features

Dual-Lens Smart Monitoring

Two cameras provide wide-angle coverage and focused monitoring simultaneously.

3MP Quad HD Video

Clear surveillance footage with 2304 × 1296 resolution.

Wide PTZ Coverage

• Pan: 350°

• Tilt: 80°

Monitor large areas with fewer blind spots.

AI Smart Detection

Supports AI human shape detection and vehicle detection.

Auto Tracking

Automatically follows moving subjects within the camera view.

Night Vision up to 30m

Infrared night vision ensures reliable monitoring in darkness.

Two-Way Talk

Built-in microphone and speaker enable real-time communication.

Flexible Storage

Supports microSD cards up to 512GB and EZVIZ CloudPlay storage.

WiFi & Ethernet Connectivity

Connect via 2.4GHz WiFi or RJ45 wired network.

---

Specifications

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS

• Pan/Tilt Angle: 350° / 80°

• Minimum Illumination: 0.5 Lux / 0 Lux with IR

• Day/Night Mode: IR-cut filter with auto switching

• Digital Noise Reduction: 3D DNR

• Wide Dynamic Range: Digital WDR

• Night Vision Distance: 30 m

---

Lens

Upper Camera

• 2.8 mm F1.6

• Viewing Angle:

  • Diagonal: 130°

  • Horizontal: 108°

  • Vertical: 56°

Bottom Camera

• 6 mm F1.6

• Viewing Angle:

  • Diagonal: 62°

  • Horizontal: 55°

  • Vertical: 28°

Lens Mount: M12

---

Video & Audio

• Maximum Resolution: 2304 × 1296

• Frame Rate: Up to 15 fps

• Video Compression: H.265 / H.264

• Bit Rate: Adaptive

• Two-way audio supported

---

Network

• WiFi Standard: IEEE 802.11 b/g/n

• Frequency Range: 2.4 GHz – 2.4835 GHz

• Transmission Rate:

  • 11b: 11 Mbps

  • 11g: 54 Mbps

  • 11n: 150 Mbps

• Wired Network: RJ45 10/100 Mbps

• Security: WPA-PSK / WPA2-PSK

---

Smart Functions

• AI Human Shape Detection

• AI Vehicle Detection

• Motion Detection

• Auto Tracking

• Custom Alert Areas

• Preset Camera Locations

• Two-Way Talk

• Dual Stream

• Anti-Flicker

• Password Protection

• Watermark

---

Storage

• Local Storage: microSD Card up to 512GB

• Cloud Storage: EZVIZ CloudPlay

---

General

• Operating Temperature: -30°C to 50°C

• Humidity: ≤95% (non-condensing)

• Weatherproof Outdoor Design

• Power Supply: DC 12V / 1.5A

• Maximum Power Consumption: 12W

---

Physical Specifications

• Dimensions: 145 × 116 × 142 mm

• Net Weight: 668 g

• Weight with Package: 960 g

---

Package Includes

• H9c Camera

• Drill Template

• Screw Kit

• Waterproof Kit

• Power Adapter

• Regulatory Information

• Quick Start Guide

---

Certifications

CE / WEEE / RoHS / REACH
